产品简介  Product Introduction


         ZRM系列颗粒状干燥过滤器采用高品质的压缩小 颗粒球形干燥剂烧结成的模块，与高密度网布结合，达到干燥过滤的作用，能有效过滤系统中残留的水 份和杂物。

         ZRM  series solid core liquid line filter drier using a high quality compression of small spherical particles sintered desiccant module, combined with high-density filter cloth ,to dry and the role of filter, that can effectively filter system residues of water and debris.

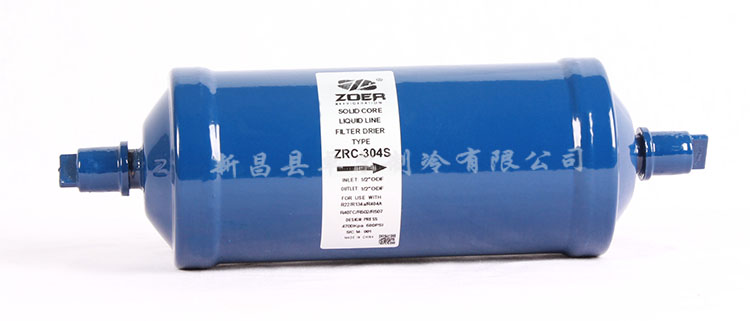

产品展示  Product Display





产品特点  Product Fedture

●高溶解水份和去除酸的能力强

 High moisture dissolution and acid removal ability

●干燥和过滤相结合

Drying and filtering effect of combining

●高强度小颗粒球形干燥剂烧结成的模块，使得运行时无震动和摩擦，减少干燥剂的磨损

Small spherical particles of high strength sintered desiccant module, to make run-time without shock and friction , reduce wear of the desiccant

●接头形式有焊接式或螺纹口式

ODF and SAE connections are available



产品属性  Product Attribute

产品说明 Specifications
高溶解水分和去除酸的能力强 50um的过滤网可在最小压力降下保持高效过滤 接头形式有焊接口和螺纹口 防腐漆保证500小时盐雾喷淋试验 最小破坏压力：17.5Mpa
命名方式	例如：ZRM-304S
	Nomenclature：For Example ZRM-304S
	ZRM		30	4	S
	Molecular Series		Unit Size (in cu. in. )	Connection Size（in1/2" ）	S=ODF Connections(omit for SAE)
尺寸数据	Dimensional Data
型号 Description	接管尺寸 Connection Size		外形尺寸（mm）Dimensions
	焊接口 ODF	螺纹口 SAE	A	B	C
ZRM-304S	1/2		235	185	76
