Product Introduction

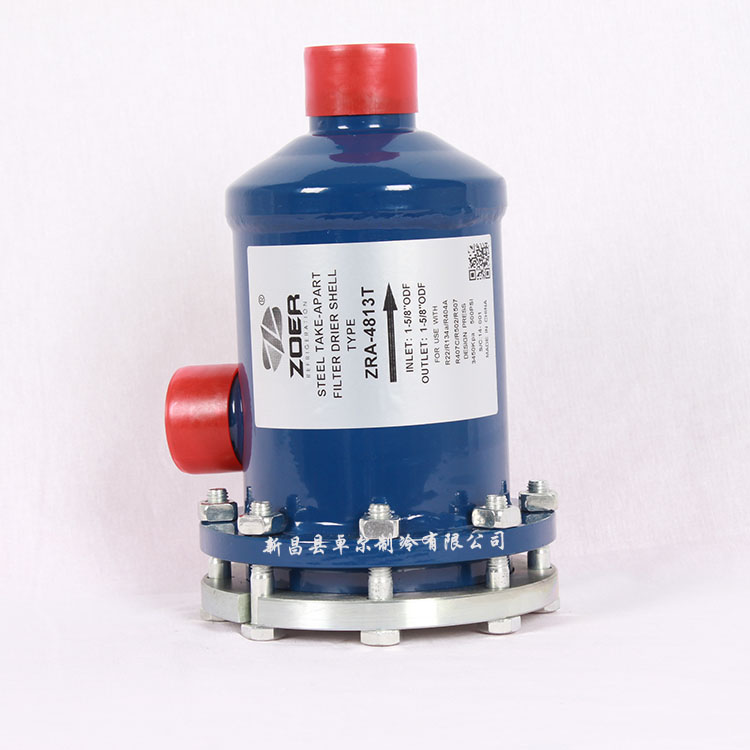

       ZRA take-apart filter drier with exchangeable solid core uses the flange connection to seal. That is very convenient to adjust and maintain the equipment. This steel liquid and  suction core shell  is especially suitable for use in conditions where compressor damage has occurred or heavy ingress of water in the system. It has super cleaning and absorption abilities (to be equipped the available cores). It can be used in the liquid line and suction line of the refrigeration system for cold storage and air adjusting equipment.



 Product Display



Product Fedture


●Can be matched well with all brands of 48 series of LineFilter Blocks and Suction Line filter cores

●Simple internal parts making easy installation, and all partsare steel Galvanized



Product Attribute

Specifications
●Can choose ZRD-48 or ZRH-48 for liquid line ●Can choose ZRF-48 or ZRX-48 for suction line ●All the types are shipped without filter or suction line cores
Naming methods	ZRA-4813T
	Nomenclature：For Example ZRA-4813T
	ZRA	48	13		T
	ZRA Steel Take -Apart Series	Unit Size (in cu. in. )	Connection Size （in1-5/8" ）		System Service? T=Liquid Line Services??? SV=Suction Line Series
Dimensional Data	Dimensional Data
Inlet&Outlet Size(in)	Number of 48 in³ cores	Desiccant Volume（cu,in.）	Dimensions（mm）
			A	B	C	D	E
1-5/8	1	48	245	164	88	114	151
